SPECIFICATIONS

Brand Name: QLPT

Country/Region of Manufacture: China

High-concerned chemical: None

Interchange Part Number: Universal Actuator

Item Height: 12

Item Length: 20

Item Weight: 500g

Item Width: 12

Manufacturer Part Number: GT35 Turbo actuator

Material: Al

OEM NO.: GT35

Origin: Mainland China

Other Part Number: GT35 wasgate

Placement on Vehicle: In Turbo

Special Features: Turbo actuator

AAA Turbocharger Parts

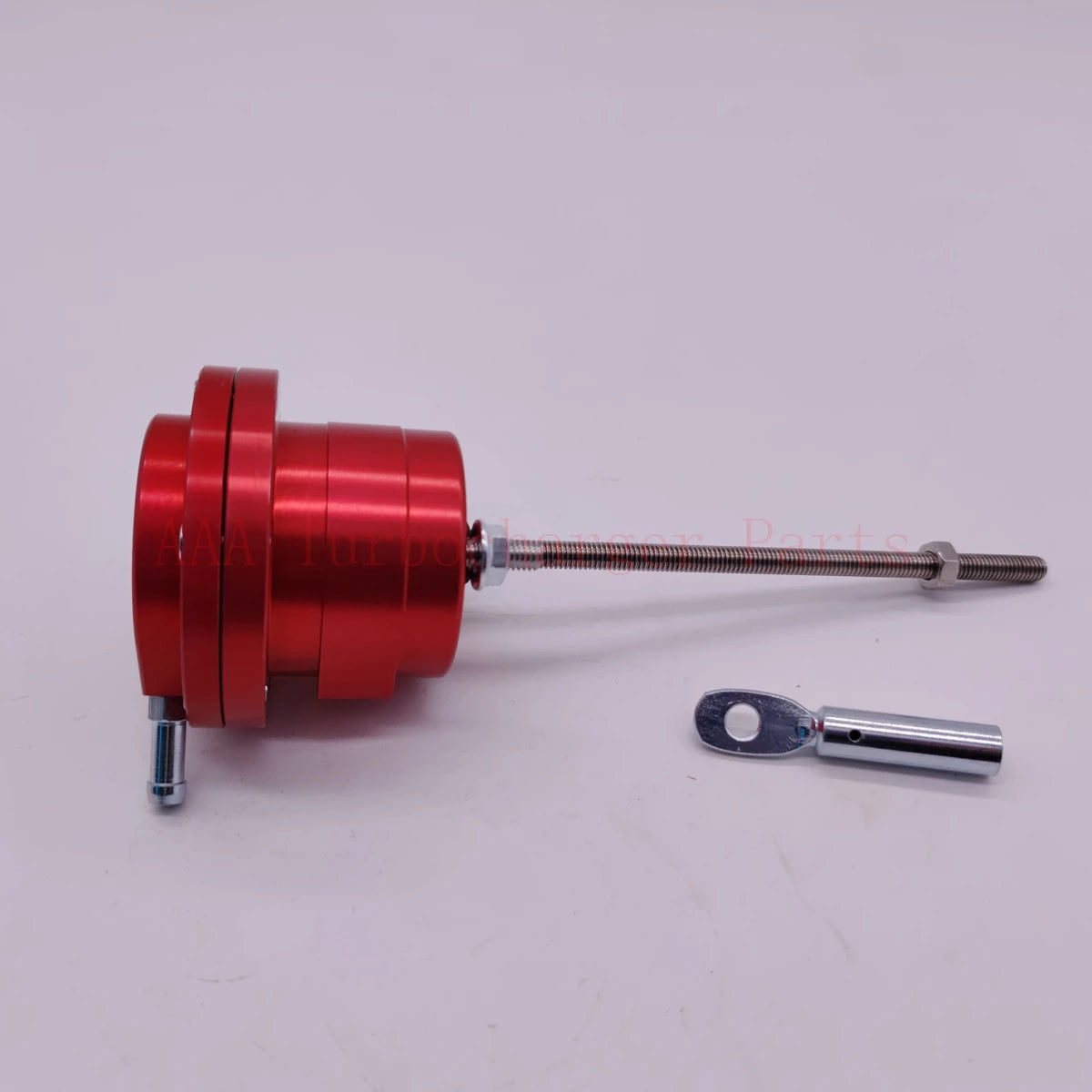

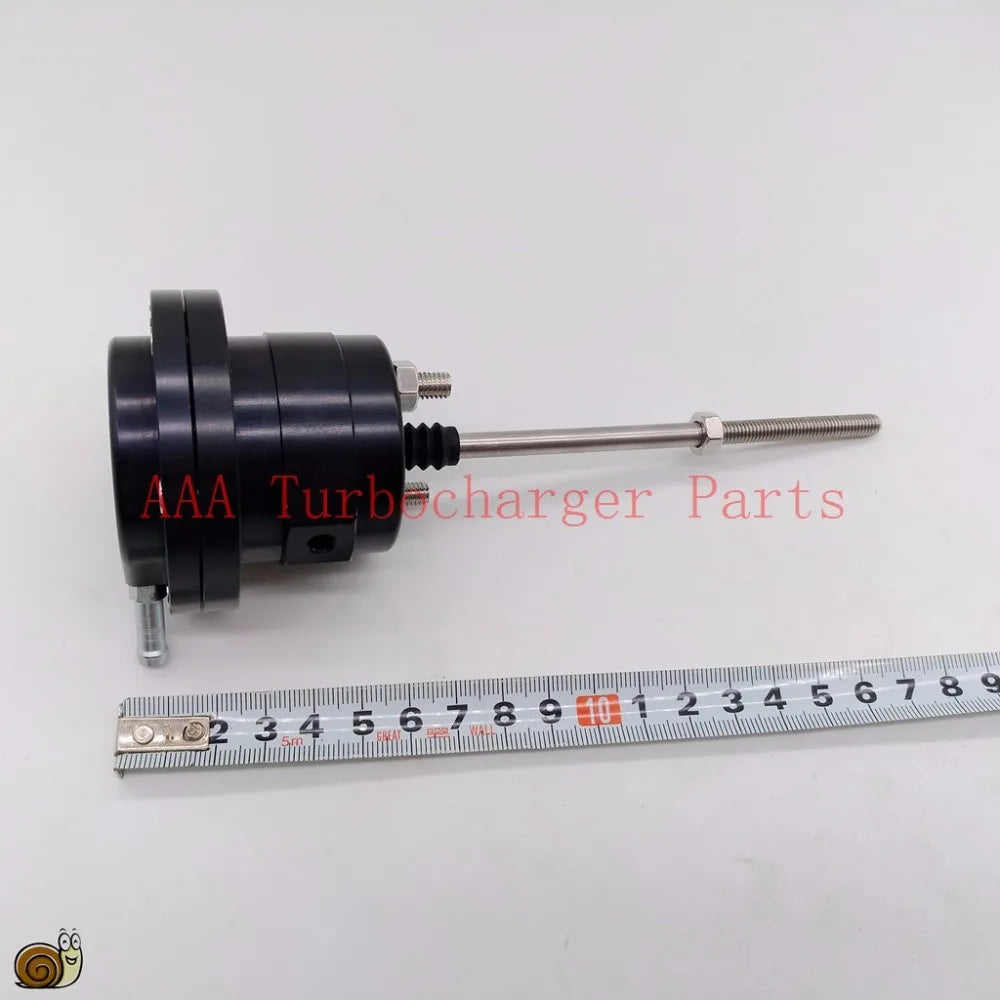

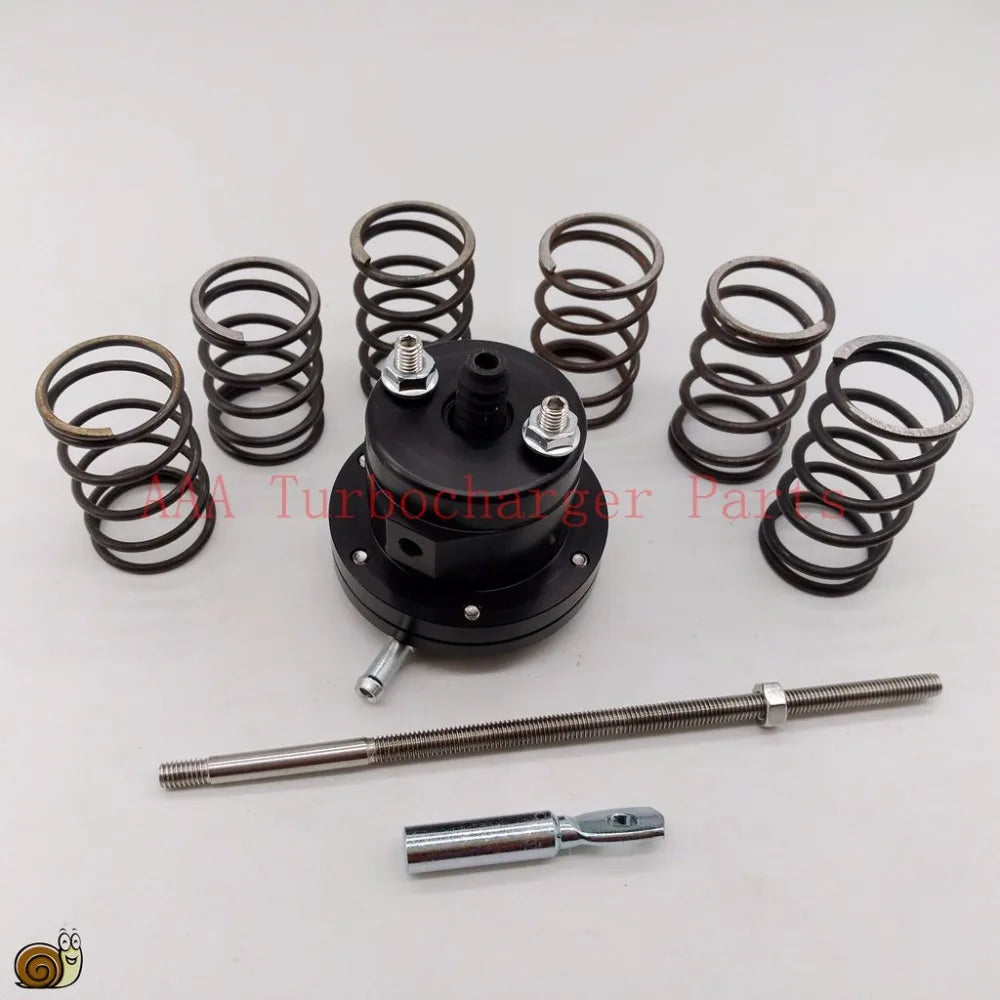

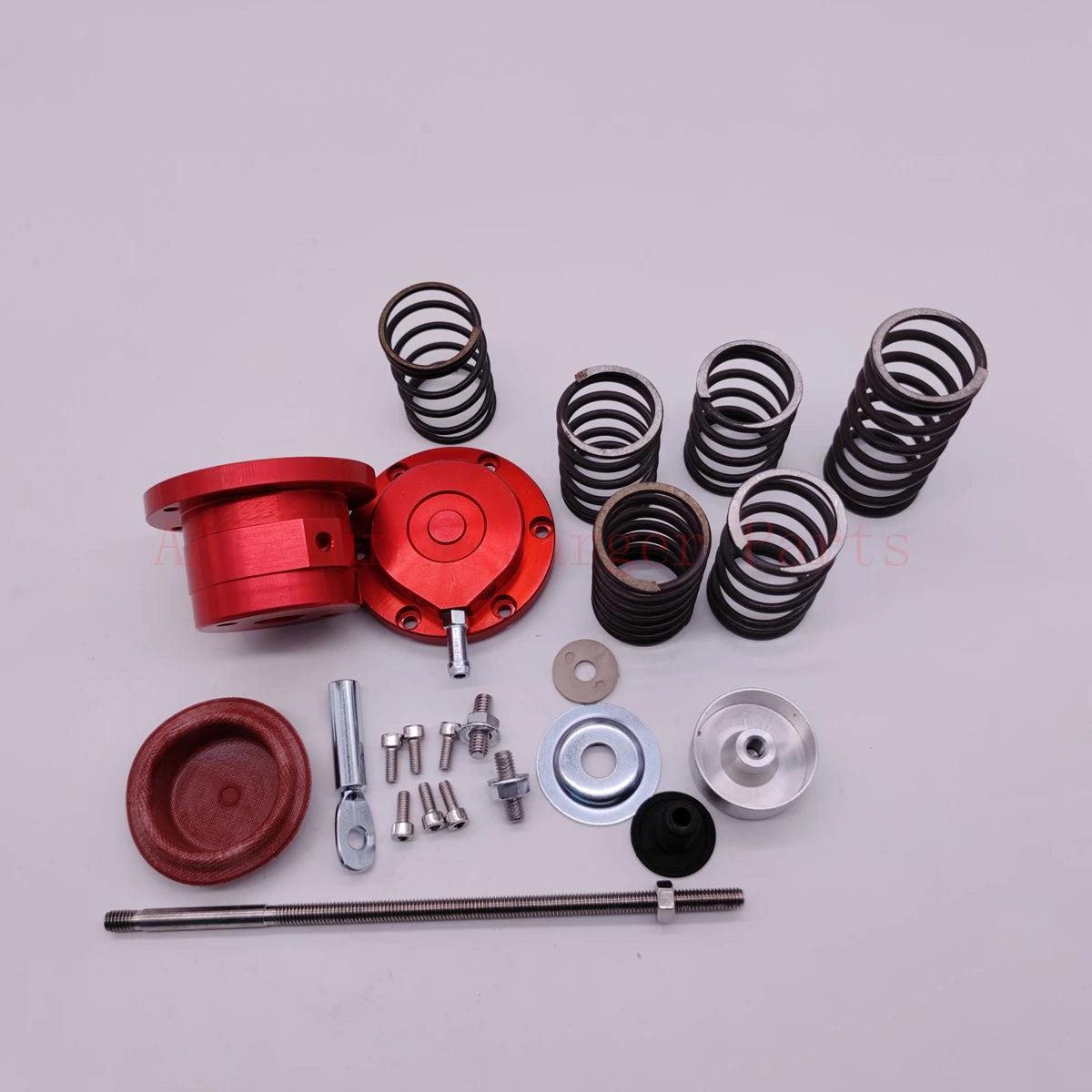

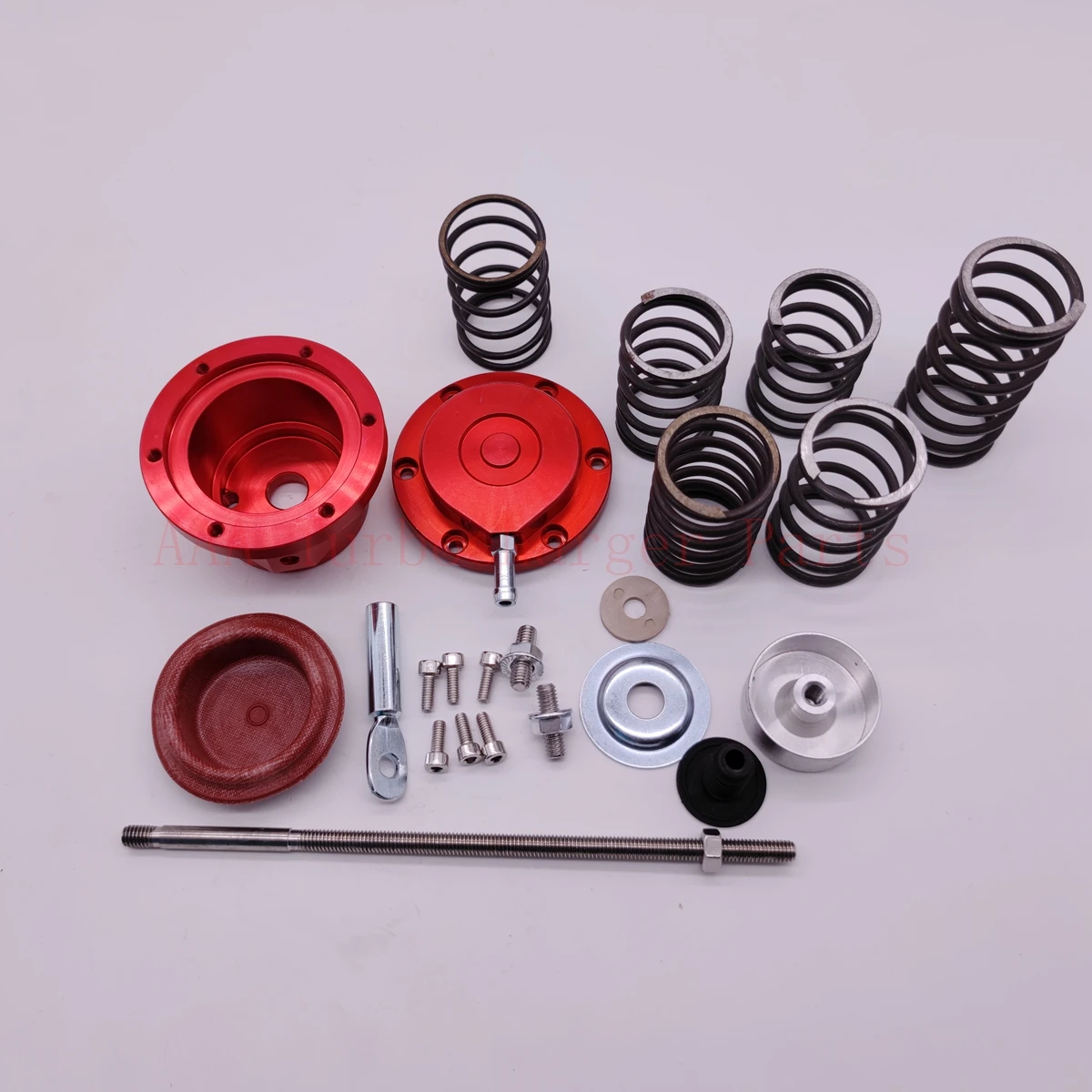

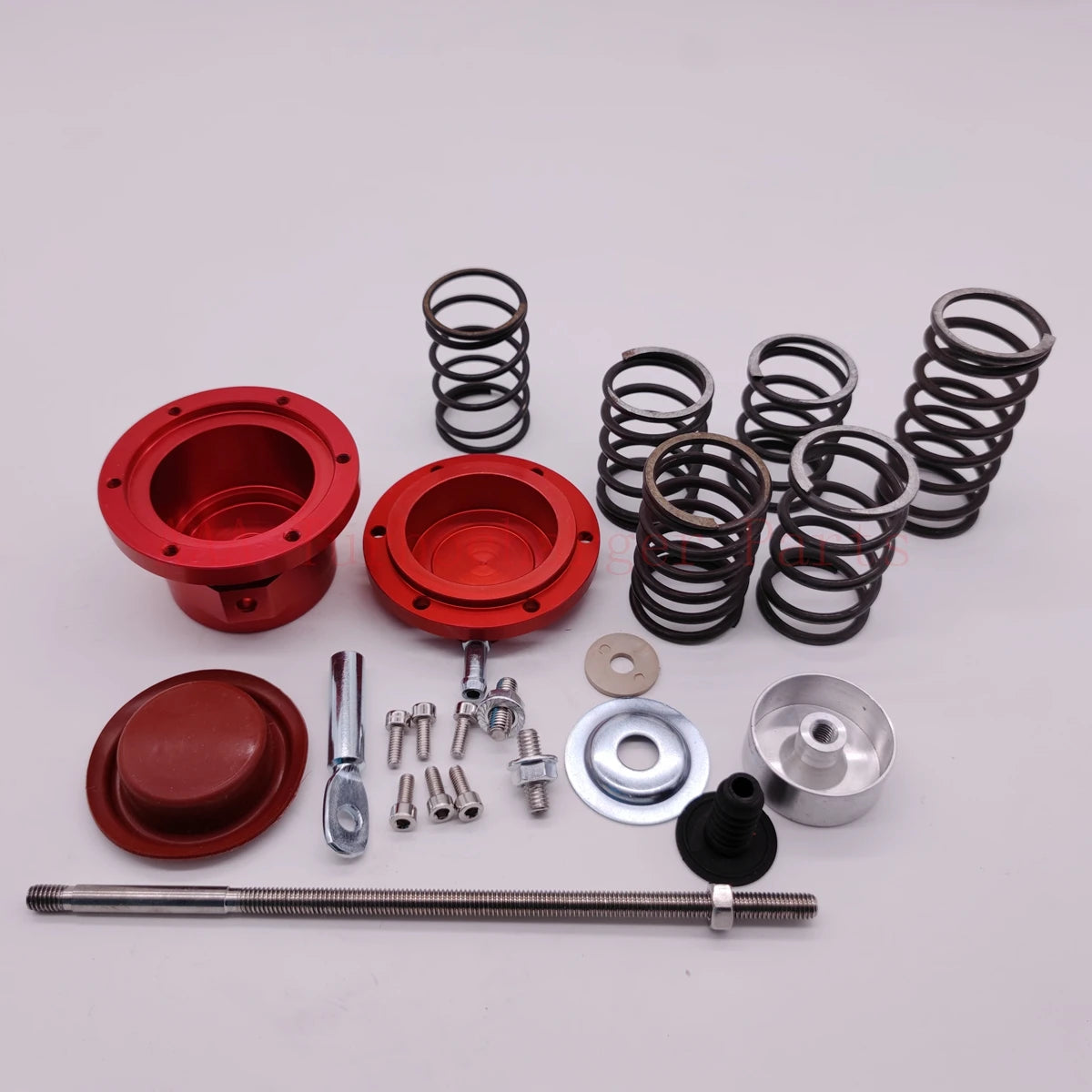

TB25/TB28/GT28/GT25/GT35/GT40 Adjust Turbocharger universal Actuator/Internal Wastegate x6 spring

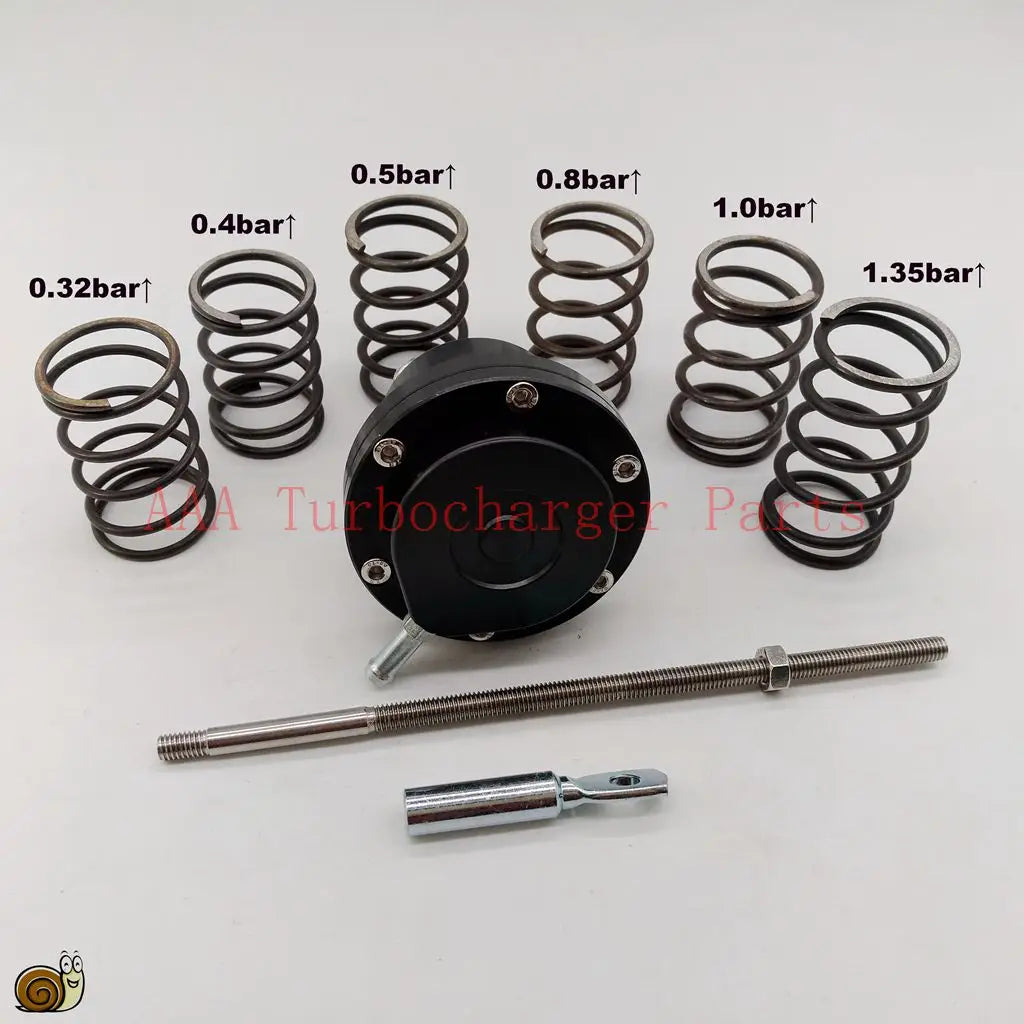

Pressure Data

Distance        Pressure

1.0mm   0.032MPa   0.32Bar   4.64Psi

2.0mm   0.037MPa   0.37Bar   5.37Psi

3.0mm   0.042MPa   0.42Bar   6.09Psi

4.0mm   0.047MPa   0.47Bar   6.82Psi

5.0mm   0.052MPa   0.52Bar   7.54Psi

......

--------------

Distance        Pressure

1.0mm    0.04MPa   0.4Bar  5.80Psi

2.0mm    0.05MPa   0.5Bar  7.25Psi

3.0mm    0.06MPa   0.6Bar  8.70Psi

4.0mm    0.07MPa   0.7Bar  10.15Psi

5.0mm    0.08MPa   0.8Bar  11.60Psi

......

--------------

Distance        Pressure

1.0mm    0.05MPa   0.5Bar   7.25Psi

2.0mm    0.06MPa   0.6Bar   8.70Psi

3.0mm    0.07MPa   0.7Bar   10.15Psi

4.0mm    0.08MPa   0.8Bar   11.60Psi

5.0mm    0.092MPa  0.92Bar  13.34Psi

......

--------------

Distance        Pressure

1.0mm    0.08MPa   0.8Bar   11.60Psi

2.0mm    0.09MPa   0.9Bar   13.05Psi

3.0mm    0.10MPa   1.0Bar   14.50Psi

4.0mm    0.11MPa   1.1Bar   15.95Psi

5.0mm    0.12MPa   1.2Bar   17.40Psi

......

--------------

Distance        Pressure

1.0mm    0.100MPa   1.00Bar   14.5Psi

2.0mm    0.112MPa   1.12Bar   16.24Psi

3.0mm    0.124MPa   1.24Bar   17.98Psi

4.0mm    0.136MPa   1.36Bar   19.72Psi

5.0mm    0.147MPa   1.47Bar   21.32Psi

......

--------------

Distance        Pressure

1.0mm    0.135MPa   1.35Bar   19.58Psi

2.0mm    0.145MPa   1.45Bar   21.03Psi

3.0mm    0.155MPa   1.55Bar   22.48Psi

4.0mm    0.165MPa   1.65Bar   23.93Psi

5.0mm    0.175MPa   1.75Bar   25.38Psi
